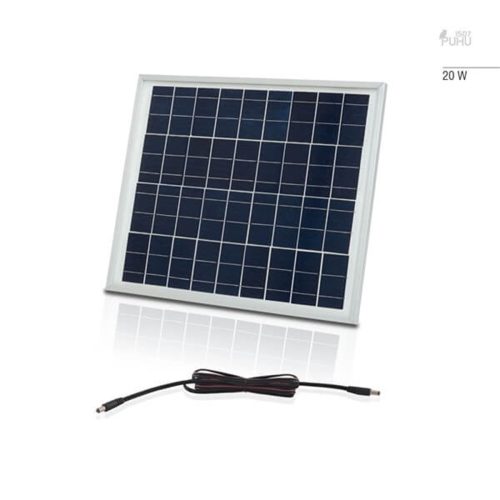

Kurtbomsan Kurtbomsan KBS Ecos-KBS Solar Panel 20W (2 Joule) with Jack
- Ecos-Puhu Solar Panel
- 20W (2 Joule) with Jack
- Ecos-Puhu Solar Panel
- 20W (2 Joule) with Jack
Technical Features;
Power: 20W
Number of Cells: 36
Open Circuit Voltage (Voc): 22.32V
Maximum Voltage (Vmp): 18.60V
Short Circuit Current (Isc): 1.38A
Maximum Current (Imp): 1.22A
Maximum System Voltage: 1000V
Module Dimensions: 362*433*20
Weight: 1.68 kilos
General Features;
Our long-lasting solar panels consist of high-efficiency polycrystalline cell series according to the models placed between tempered glass, EVA and TPT layers and electrically connected.
Cell Structure;
Our solar panels are produced with world-accepted Class A polycrystalline cells. Our solar panels are produced in an automatic production line.
Anti-reflective Glass;
Our long-lasting, tempered, high-transmission glass has a unique anti-reflective coating feature that reflects more light to the solar cells and provides higher energy efficiency.
Frame Structure;
Our solar panels use frames made of anodized aluminum to provide structural strength. It is extremely resistant to wind, snow and other adverse weather conditions with its mechanical strength. There are drainage holes so that rainwater does not remain in the frame and flows. Our solar panels are very easy to install.
Connection Box;
The terminal box has an IP67 Protection class standard. There are bypass diodes against shading effect.
Resistance to External Environmental Conditions;
Our solar panels; It has a carrying resistance of 5700Pa against external environmental conditions such as salt mist, ammonia and similar, as well as wind, hail and snow loads. It can operate between -40 and +85 °C.
